ccid-utils

About

ccid-utils is a USB smartcard driver and development platform. The driver follows a simple synchronous design which supports multiple slots but only one transaction at a time and includes a python interface. It also includes a commandline smartcard shell with a searchable history. The shell, written in python, offers many useful features for developing with smart-cards as well as for reverse engineering APDU formats. The package also includes tools for reading data from GSM SIM cards and EMV credit/debit cards. The SIM tool is very basic but allows reading SMS messages from a SIM. An example EMV (credit/debit) card tool is included which is boilerplate code for utilizing the EMV C API. A graphical interface for reading EMV cards is also provided.

Source code documentation is available for browsing online.

Screenshots

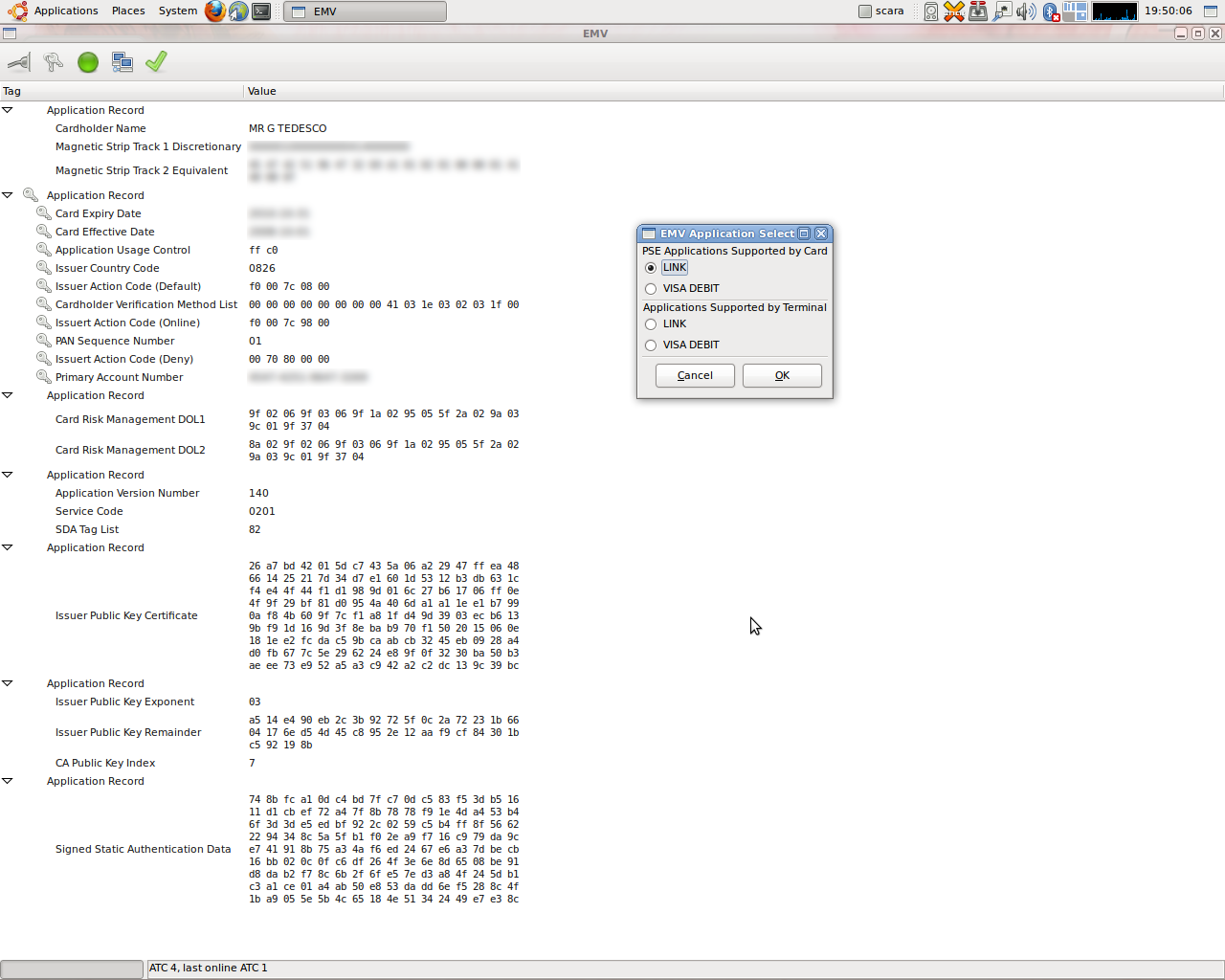

Application main window and application selection

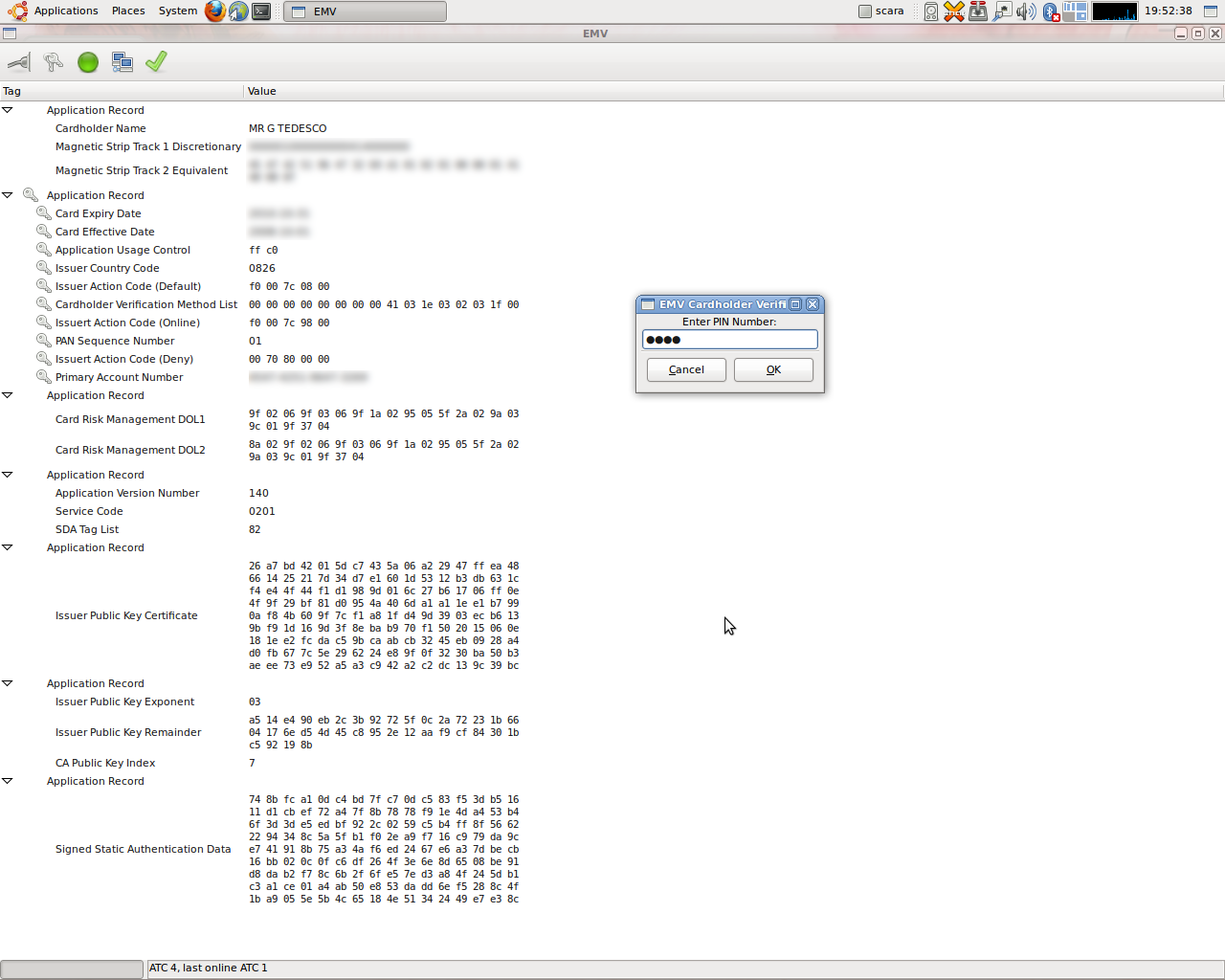

Cardholder Verification (PIN)

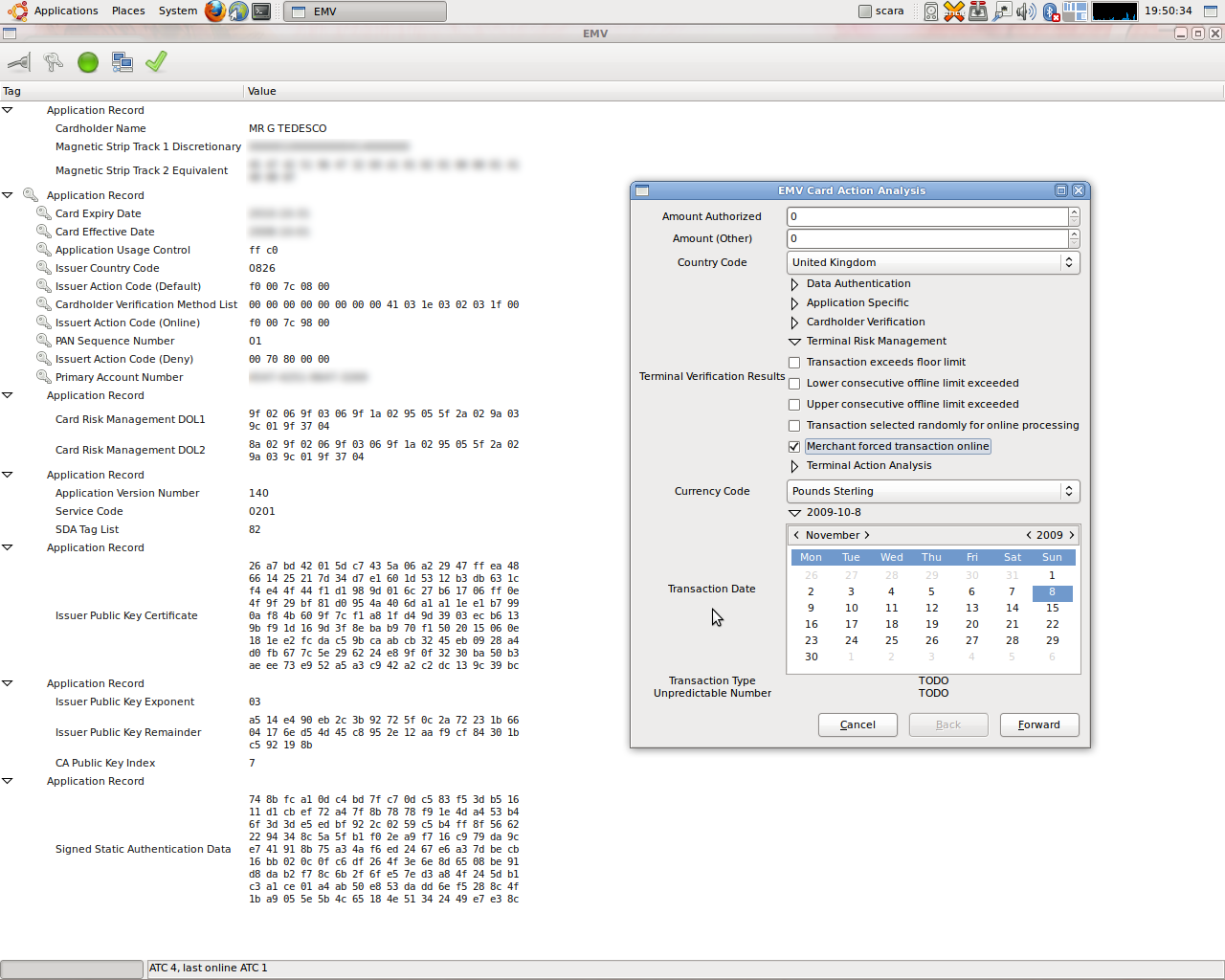

Transaction processing (input)

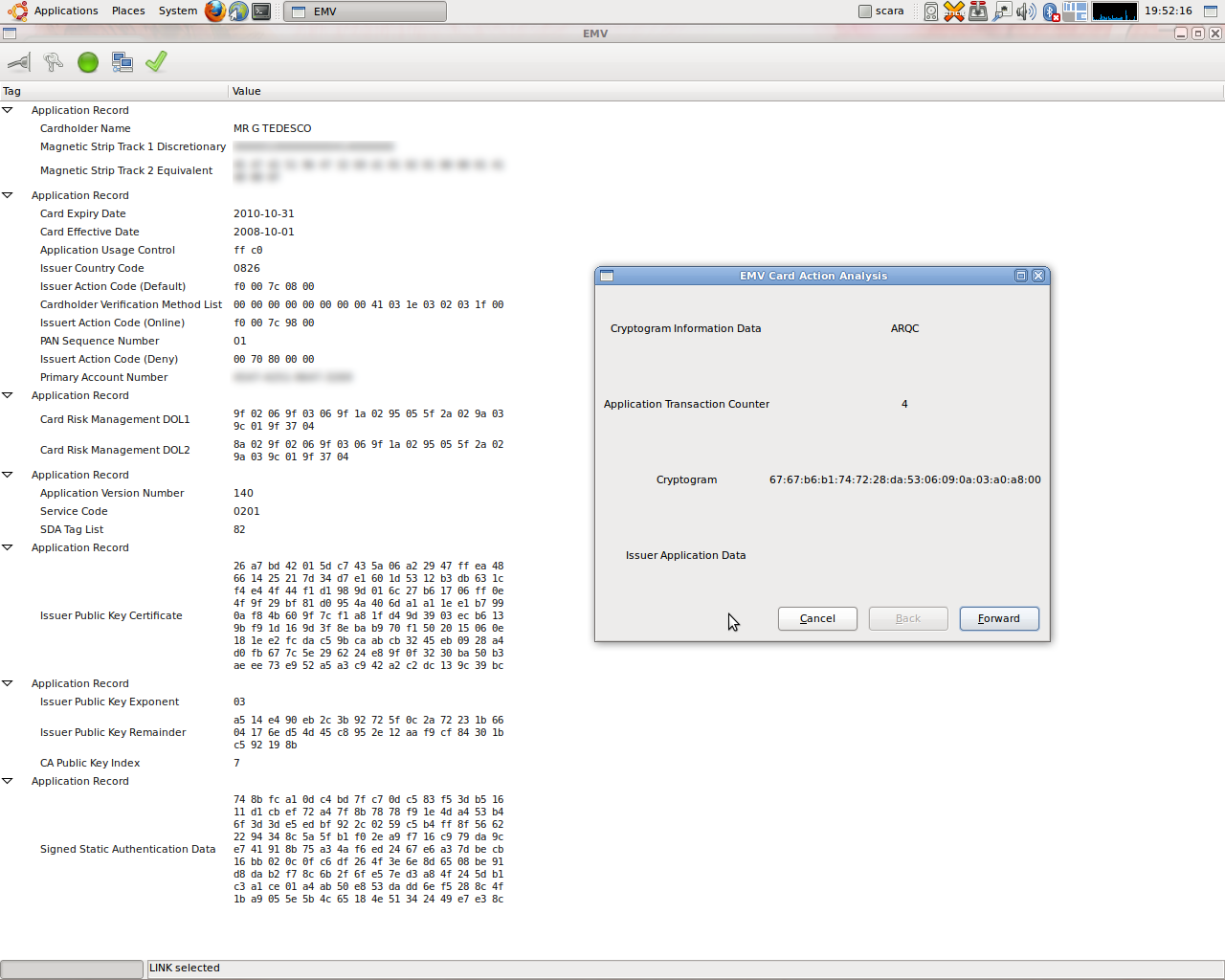

Transaction processing (results)

Copyleft - All rights reversed

ccid-utils is free software released under the GNU GPL version 3.
ccid-utils is Copyright © 2008-2010 Gianni Tedesco.

Downloads

ccid-utils-0.3.tar.gz - FYI: chip and pin is broken
ccid-utils-0.2.tar.gz - we do it for the love, fuck dem wages
ccid-utils-0.1.tar.gz - initial release.

You can follow development using git by issuing the following command:

git clone git://github.com/giannitedesco/ccid-utils.git

Contact / Support

You can address any bug reports, patches, questions etc.. to Gianni Tedesco <gianni at scaramanga dot co dot uk>

CCID Shell Command Reference

? / help : Print out a help message.
ber : Enable or disable BER TLV decoding of responses.
brute_cla : Brute force CLA.
brute_fs : Brute force file ID's.
brute_get : Brute force data objects.
brute_ins : Brute force INS.
challenge : Retreive a random number from the card.
cla : Set CLA.
get : Get a data object.
hex : Enable or disable HEX decoding of responses.
quit : Exit the shell.
read_rec : Read a record from the currently selected file.
rx_len : Set RX len.
select : Select a file by ID, name or path.
slot_off : Power off the slot.
slot_on : Power on the slot and retrieve ATR.
status : Display hardware status.
transmit : Transmit a raw APDU (except for CLA).
tx_len : Set TX len.
wait : Wait for card insertion.

Example Credit Card Session

This is my credit card so please don't rip me off!! hehe.

ccid-# slot_on
ccid> Got 18 bytes ATR:
 | 00000 : ;n...1.q.e...... 3b 6e 00 00 00 31 c0 71 d6 65 a3 03 01 80 00 83
 | 00010 : ..               90 00

ccid-# brute_cla
ccid> Found 2 classes, SW1=6d SW2=00: Bad INS
ccid>  o CLA 00
ccid>  o CLA 80

ccid-# brute_ins
INS 6d made card freak
INS 92 made card freak
ccid> Found 1 objects, SW1=69 SW2=85: Permission.... DENIED
ccid>  o INS c0 (GET_RESPONSE)
ccid> Found 3 objects, SW1=6a SW2=86: Bad parameters P1-P2
ccid>  o INS a4 (SELECT_FILE)
ccid>  o INS b2 (READ_RECORDS)
ccid>  o INS dc (UPDATE_DATA)
ccid> Found 3 objects, SW1=69 SW2=86: Permission.... DENIED
ccid>  o INS b0 (READ_BINARY)
ccid>  o INS d6 (UPDATE_BINARY)
ccid>  o INS e2 (APPEND_RECORD)

ccid-# select name 1PAY.SYS.DDF01
ccid> SW1 = 0x90 : SW2 = 0x00 : Success (47 bytes)
 | 00000 : o-..1PAY.SYS.DDF 6f 2d 84 0e 31 50 41 59 2e 53 59 53 2e 44 44 46
 | 00010 : 01....._-.en.... 30 31 a5 1b 88 01 01 5f 2d 02 65 6e 9f 11 01 01
 | 00020 : .......?.......  bf 0c 0c c5 0a ff ff 3f 00 00 00 02 ff ff 02

ccid-# hex off
ccid> HEX decoding: off
ccid-# ber on
ccid> BER TLV decoding: on

ccid-# read_rec 1 0
ccid> SW1 = 0x90 : SW2 = 0x00 : Success (29 bytes)
 .tag = 16 (0x10)
 .len = 29 (0x1d) {
   .tag = 1 (0x1)
   .len = 27 (0x1b) {
     .tag = 15 (0xf)
     .len = 25 (0x19)
     00000 : ....)..          a0 00 00 00 29 10 10

     .tag = 16 (0x10)
     .len = 25 (0x19)
     00000 : LINK             4c 49 4e 4b

     .tag = 18 (0x12)
     .len = 25 (0x19)
     00000 : LINK             4c 49 4e 4b

     .tag = 7 (0x7)
     .len = 25 (0x19)
     00000 : .                01

   }
 }

ccid-# read_rec 2 0
ccid> SW1 = 0x90 : SW2 = 0x00 : Success (41 bytes)
 .tag = 16 (0x10)
 .len = 41 (0x29) {
   .tag = 1 (0x1)
   .len = 39 (0x27) {
     .tag = 15 (0xf)
     .len = 37 (0x25)
     00000 : .......          a0 00 00 00 03 10 10

     .tag = 16 (0x10)
     .len = 37 (0x25)
     00000 : VISA DEBIT       56 49 53 41 20 44 45 42 49 54

     .tag = 18 (0x12)
     .len = 37 (0x25)
     00000 : VISA DEBIT       56 49 53 41 20 44 45 42 49 54

     .tag = 7 (0x7)
     .len = 37 (0x25)
     00000 : .                02

   }
 }

ccid-# select name a0 00 00 00 03 10 10
ccid> SW1 = 0x90 : SW2 = 0x00 : Success (65 bytes)
 .tag = 15 (0xf)
 .len = 65 (0x41) {
   .tag = 4 (0x4)
   .len = 63 (0x3f)
   00000 : .......          a0 00 00 00 03 10 10

   .tag = 5 (0x5)
   .len = 63 (0x3f) {
     .tag = 16 (0x10)
     .len = 52 (0x34)
     00000 : VISA DEBIT       56 49 53 41 20 44 45 42 49 54

     .tag = 7 (0x7)
     .len = 52 (0x34)
     00000 : .                02

     .tag = 45 (0x2d)
     .len = 52 (0x34)
     00000 : en               65 6e

     .tag = 17 (0x11)
     .len = 52 (0x34)
     00000 : .                01

     .tag = 18 (0x12)
     .len = 52 (0x34)
     00000 : VISA DEBIT       56 49 53 41 20 44 45 42 49 54

     .tag = 12 (0xc)
     .len = 52 (0x34) {
       .tag = 5 (0x5)
       .len = 12 (0xc)
       00000 : ...QG.....       01 01 7f 51 47 00 03 0f ff 03

     }
   }
 }

ccid-# read_rec 1 1
ccid> SW1 = 0x90 : SW2 = 0x00 : Success (79 bytes)
 .tag = 16 (0x10)
 .len = 79 (0x4f) {
   .tag = 32 (0x20)
   .len = 77 (0x4d)
   00000 : MR G TEDESCO     4d 52 20 47 20 54 45 44 45 53 43 4f 20 20 20 20
   00010 :                  20 20 20 20 20 20 20 20 20 20

   .tag = 23 (0x17)
   .len = 77 (0x4d)
   00000 : XXXXXXXX.......A XX XX XX XX XX XX XX XX d1 01 02 01 00 00 01 41
   00010 : @..              40 00 0f

   .tag = 31 (0x1f)
   .len = 77 (0x4d)
   00000 : 0000010000000004 30 30 30 30 30 31 30 30 30 30 30 30 30 30 30 34
   00010 : 14000000         31 34 30 30 30 30 30 30
 }

ccid-# read_rec 1 2
ccid> SW1 = 0x90 : SW2 = 0x00 : Success (80 bytes)
 .tag = 16 (0x10)
 .len = 80 (0x50) {
   .tag = 37 (0x25)
   .len = 78 (0x4e)
   00000 : XX.              YY MM 01

   .tag = 36 (0x24)
   .len = 78 (0x4e)
   00000 : XX1              YY MM 31

   .tag = 26 (0x1a)
   .len = 78 (0x4e)
   00000 : XXXXXXXX         XX XX XX XX XX XX XX XX

   .tag = 52 (0x34)
   .len = 78 (0x4e)
   00000 : .                01

   .tag = 7 (0x7)
   .len = 78 (0x4e)
   00000 : ..               ff c0

   .tag = 14 (0xe)
   .len = 78 (0x4e)
   00000 : ........A....... 00 00 00 00 00 00 00 00 41 03 1e 03 02 03 1f 00

   .tag = 13 (0xd)
   .len = 78 (0x4e)
   00000 : ..|..            f0 00 7c 08 00

   .tag = 14 (0xe)
   .len = 78 (0x4e)
   00000 : .p...            00 70 80 00 00

   .tag = 15 (0xf)
   .len = 78 (0x4e)
   00000 : ..|..            f0 00 7c 98 00

   .tag = 40 (0x28)
   .len = 78 (0x4e)
   00000 : .&               08 26
 }
