include/ccid-spec.h File Reference

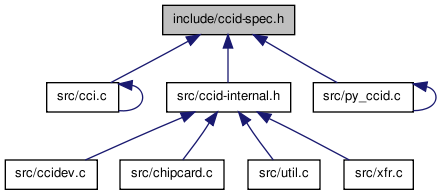

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  ccid_msg
struct  ccid_desc

Defines

#define CCID_DT   0x21U
#define CCID_MAX_SLOTS   0x10U
#define CCID_ERR_ABORT   0xff
#define CCID_ERR_MUTE   0xfe
#define CCID_ERR_PARITY   0xfd
#define CCID_ERR_OVERRUN   0xfc
#define CCID_ERR_HARDWARE   0xfb
#define CCID_ERR_BAD_TS   0xf8
#define CCID_ERR_BAD_TCK   0xf7
#define CCID_ERR_PROTOCOL   0xf6
#define CCID_ERR_CLASS   0xf5
#define CCID_ERR_PROCEDURE   0xf4
#define CCID_ERR_DEACTIVATED   0xf3
#define CCID_ERR_AUTO_SEQ   0xf2
#define CCID_ERR_PIN_TIMEOUT   0xf0
#define CCID_ERR_BUSY   0xe0
#define CCID_ERR_USR_MIN   0x81
#define CCID_ERR_USR_MAX   0xc0
#define RDR_to_PC_DataBlock   0x80
#define RDR_to_PC_SlotStatus   0x81
#define RDR_to_PC_Parameters   0x82
#define RDR_to_PC_Escape   0x83
#define RDR_to_PC_BaudAndFreq   0x84
#define RDR_to_PC_NotifySlotChange   0x50
#define RDR_to_PC_HardwareError   0x51
#define PC_to_RDR_SetParameters   0x61
#define PC_to_RDR_IccPowerOn   0x62
#define PC_to_RDR_IccPowerOff   0x63
#define PC_to_RDR_GetSlotStatus   0x65
#define PC_to_RDR_Secure   0x69
#define PC_to_RDR_T0APDU   0x6a
#define PC_to_RDR_Escape   0x6b
#define PC_to_RDR_GetParameters   0x6c
#define PC_to_RDR_ResetParameters   0x6d
#define PC_to_RDR_IccClock   0x6e
#define PC_to_RDR_XfrBlock   0x6f
#define PC_to_RDR_Mechanical   0x71
#define PC_to_RDR_Abort   0x72
#define PC_to_RDR_SetBaudAndFreq   0x73
#define CCID_STATUS_RESULT_MASK   0xc0
#define CCID_RESULT_SUCCESS   (0 << 6)
#define CCID_RESULT_ERROR   (1 << 6)
#define CCID_RESULT_TIMEOUT   (2 << 6)
#define CCID_SLOT_STATUS_MASK   0x03
#define CCID_STATUS_ICC_ACTIVE   0x0
#define CCID_STATUS_ICC_PRESENT   0x1
#define CCID_STATUS_ICC_NOT_PRESENT   0x2
#define CCID_5V   (1<<0)
#define CCID_3V   (1<<1)
#define CCID_1_8V   (1<<2)
#define CCID_T0   (1<<0)
#define CCID_T1   (1<<1)
#define CCID_2WIRE   (1<<0)
#define CCID_3WIRE   (1<<1)
#define CCID_I2C   (1<<2)
#define CCID_ATR_CONFIG   (1<<1)
#define CCID_ACTIVATE   (1<<2)
#define CCID_VOLTAGE   (1<<3)
#define CCID_FREQ   (1<<4)
#define CCID_BAUD   (1<<5)
#define CCID_PPS_VENDOR   (1<<6)
#define CCID_PPS   (1<<7)
#define CCID_CLOCK_STOP   (1<<8)
#define CCID_NAD   (1<<9)
#define CCID_IFSD   (1<<10)
#define CCID_T1_TPDU   (1<<16)
#define CCID_T1_APDU   (1<<17)
#define CCID_T1_APDU_EXT   (1<<18)
#define CCID_PIN_VER   (1<<0)
#define CCID_PIN_MOD   (1<<1)

Variables

struct ccid_msg _packed

Define Documentation

#define CCID_1_8V   (1<<2)

Definition at line 99 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_2WIRE   (1<<0)

Definition at line 113 of file ccid-spec.h.

#define CCID_3V   (1<<1)

Definition at line 98 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_3WIRE   (1<<1)

Definition at line 114 of file ccid-spec.h.

#define CCID_5V   (1<<0)

Definition at line 97 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_ACTIVATE   (1<<2)

Definition at line 120 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_ATR_CONFIG   (1<<1)

Definition at line 119 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_BAUD   (1<<5)

Definition at line 123 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_CLOCK_STOP   (1<<8)

Definition at line 126 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_DT   0x21U

Definition at line 10 of file ccid-spec.h.

Referenced by probe_descriptors().

#define CCID_ERR_ABORT   0xff

Definition at line 15 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_AUTO_SEQ   0xf2

Definition at line 26 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_BAD_TCK   0xf7

Definition at line 21 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_BAD_TS   0xf8

Definition at line 20 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_BUSY   0xe0

Definition at line 28 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_CLASS   0xf5

Definition at line 23 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_DEACTIVATED   0xf3

Definition at line 25 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_HARDWARE   0xfb

Definition at line 19 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_MUTE   0xfe

Definition at line 16 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_OVERRUN   0xfc

Definition at line 18 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_PARITY   0xfd

Definition at line 17 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_PIN_TIMEOUT   0xf0

Definition at line 27 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_PROCEDURE   0xf4

Definition at line 24 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_PROTOCOL   0xf6

Definition at line 22 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_USR_MAX   0xc0

Definition at line 30 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_ERR_USR_MIN   0x81

Definition at line 29 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_FREQ   (1<<4)

Definition at line 122 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_I2C   (1<<2)

Definition at line 115 of file ccid-spec.h.

#define CCID_IFSD   (1<<10)

Definition at line 128 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_MAX_SLOTS   0x10U

Definition at line 13 of file ccid-spec.h.

Referenced by cci_probe().

#define CCID_NAD   (1<<9)

Definition at line 127 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_PIN_MOD   (1<<1)

Definition at line 140 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_PIN_VER   (1<<0)

Definition at line 139 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_PPS   (1<<7)

Definition at line 125 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_PPS_VENDOR   (1<<6)

Definition at line 124 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_RESULT_ERROR   (1 << 6)

Definition at line 64 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_RESULT_SUCCESS   (0 << 6)

Definition at line 63 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_RESULT_TIMEOUT   (2 << 6)

Definition at line 65 of file ccid-spec.h.

Referenced by _cmd_result(), and _RDR_to_PC().

#define CCID_SLOT_STATUS_MASK   0x03

Definition at line 67 of file ccid-spec.h.

Referenced by _chipcard_set_status().

#define CCID_STATUS_ICC_ACTIVE   0x0

Definition at line 68 of file ccid-spec.h.

Referenced by _chipcard_set_status().

#define CCID_STATUS_ICC_NOT_PRESENT   0x2

Definition at line 70 of file ccid-spec.h.

Referenced by _chipcard_set_status().

#define CCID_STATUS_ICC_PRESENT   0x1

Definition at line 69 of file ccid-spec.h.

Referenced by _chipcard_set_status().

#define CCID_STATUS_RESULT_MASK   0xc0

Definition at line 62 of file ccid-spec.h.

Referenced by _cmd_result().

#define CCID_T0   (1<<0)

Definition at line 102 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_T1   (1<<1)

Definition at line 103 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_T1_APDU   (1<<17)

Definition at line 131 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_T1_APDU_EXT   (1<<18)

Definition at line 132 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_T1_TPDU   (1<<16)

Definition at line 130 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define CCID_VOLTAGE   (1<<3)

Definition at line 121 of file ccid-spec.h.

Referenced by fill_ccid_desc().

#define PC_to_RDR_Abort   0x72

Definition at line 59 of file ccid-spec.h.

#define PC_to_RDR_Escape   0x6b

Definition at line 53 of file ccid-spec.h.

#define PC_to_RDR_GetParameters   0x6c

Definition at line 54 of file ccid-spec.h.

#define PC_to_RDR_GetSlotStatus   0x65

Definition at line 49 of file ccid-spec.h.

Referenced by _PC_to_RDR_GetSlotStatus().

#define PC_to_RDR_IccClock   0x6e

Definition at line 56 of file ccid-spec.h.

#define PC_to_RDR_IccPowerOff   0x63

Definition at line 47 of file ccid-spec.h.

Referenced by _PC_to_RDR_IccPowerOff().

#define PC_to_RDR_IccPowerOn   0x62

Definition at line 46 of file ccid-spec.h.

Referenced by _PC_to_RDR_IccPowerOn().

#define PC_to_RDR_Mechanical   0x71

Definition at line 58 of file ccid-spec.h.

#define PC_to_RDR_ResetParameters   0x6d

Definition at line 55 of file ccid-spec.h.

#define PC_to_RDR_Secure   0x69

Definition at line 51 of file ccid-spec.h.

#define PC_to_RDR_SetBaudAndFreq   0x73

Definition at line 60 of file ccid-spec.h.

#define PC_to_RDR_SetParameters   0x61

Definition at line 45 of file ccid-spec.h.

#define PC_to_RDR_T0APDU   0x6a

Definition at line 52 of file ccid-spec.h.

#define PC_to_RDR_XfrBlock   0x6f

Definition at line 57 of file ccid-spec.h.

Referenced by _PC_to_RDR_XfrBlock().

#define RDR_to_PC_BaudAndFreq   0x84

Definition at line 38 of file ccid-spec.h.

#define RDR_to_PC_DataBlock   0x80

Definition at line 34 of file ccid-spec.h.

Referenced by _RDR_to_PC_DataBlock().

#define RDR_to_PC_Escape   0x83

Definition at line 37 of file ccid-spec.h.

#define RDR_to_PC_HardwareError   0x51

Definition at line 42 of file ccid-spec.h.

Referenced by _cci_wait_for_interrupt().

#define RDR_to_PC_NotifySlotChange   0x50

Definition at line 41 of file ccid-spec.h.

Referenced by _cci_wait_for_interrupt().

#define RDR_to_PC_Parameters   0x82

Definition at line 36 of file ccid-spec.h.

#define RDR_to_PC_SlotStatus   0x81

Definition at line 35 of file ccid-spec.h.

Referenced by _RDR_to_PC_SlotStatus().


Variable Documentation
