include/ccid.h File Reference

#include <stdint.h>
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#include <assert.h>
#include "compiler.h"

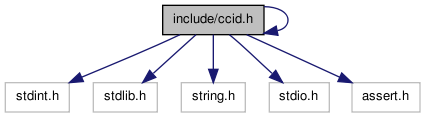

Include dependency graph for ccid.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines

#define CHIPCARD_ACTIVE   0x0
 Chip card is present in the slot, powered and clocked.
#define CHIPCARD_PRESENT   0x1
 Chip card is present in the slot but not powered or clocked.
#define CHIPCARD_NOT_PRESENT   0x2
 Chip card is not present in the slot.
#define CHIPCARD_CLOCK_ERR   0x0
 There was an error while retrieving clock status.
#define CHIPCARD_CLOCK_START   0x1
 Clock is started.
#define CHIPCARD_CLOCK_STOP_L   0x2
 Clock signal is stopped low.
#define CHIPCARD_CLOCK_STOP_H   0x3
 Clock is stopped high.
#define CHIPCARD_CLOCK_STOP   0x4
 Clock is stopped in unknown state.
#define CHIPCARD_AUTO_VOLTAGE   0x0
 Automatically select chip card voltage.
#define CHIPCARD_5V   0x1
 5 Volts.
#define CHIPCARD_3V   0x2
 3 Volts.
#define CHIPCARD_1_8V   0x3
 1.8 Volts.

Typedefs

typedef struct _ccicci_t
 Chip Card Interface Device.
typedef struct _chipcardchipcard_t
 Chip Card.
typedef struct _xfrxfr_t
 Transaction Buffer.
typedef struct libusb_device * ccidev_t
 Physical Chip Card Interface Device.

Functions

_public ccidev_tccid_get_device_list (size_t *nmemb)
 Find first physical CCI device on the system.
_public void ccid_free_device_list (ccidev_t *list)
_public ccidev_t ccid_device (uint8_t bus, uint8_t addr)
_public uint8_t ccid_device_bus (ccidev_t dev)
_public uint8_t ccid_device_addr (ccidev_t dev)
_public cci_t cci_probe (ccidev_t dev, const char *tracefile)
 Connect to a physical chipcard device.
_public unsigned int cci_slots (cci_t cci)
 Retrieve the number of slots in the CCID.
_public chipcard_t cci_get_slot (cci_t cci, unsigned int i)
 Retrieve a handle to a CCID slot.
_public void cci_close (cci_t cci)
 Close connection to a chip card device.
_public void cci_log (cci_t cci, const char *fmt,...) _printf(2
_public void _public xfr_t xfr_alloc (size_t txbuf, size_t rxbuf)
 Allocate a transaction buffer.
_public void xfr_reset (xfr_t xfr)
 Reset a transaction buffer buffer.
_public int xfr_tx_byte (xfr_t xfr, uint8_t byte)
 Append a byte of data to the transmit buffer.
_public int xfr_tx_buf (xfr_t xfr, const uint8_t *ptr, size_t len)
 Append a string of bytes to the transmit buffer.
_public uint8_t xfr_rx_sw1 (xfr_t xfr)
 Retrieve status word 1 from the receive buffer.
_public uint8_t xfr_rx_sw2 (xfr_t xfr)
 Retrieve status word 2 from the receive buffer.
_public const uint8_t * xfr_rx_data (xfr_t xfr, size_t *len)
 Retrieve data portion of the receive buffer.
_public void xfr_free (xfr_t xfr)
 Free a transaction buffer.
_public cci_t chipcard_cci (chipcard_t cc)
 Return pointer to CCID to which a chip card slot belongs.
_public int chipcard_wait_for_card (chipcard_t cc)
 Wait for insertion of a chip card in to the slot.
_public unsigned int chipcard_status (chipcard_t cc)
 Retrieve cached chip card status.
_public unsigned int chipcard_slot_status (chipcard_t cc)
 Retrieve chip card status.
_public const uint8_t * chipcard_slot_on (chipcard_t cc, unsigned int voltage, size_t *atr_len)
 Power on a chip card slot.
_public int chipcard_slot_off (chipcard_t cc)
 Power off a chip card slot.
_public int chipcard_transact (chipcard_t cc, xfr_t xfr)
 Perform a chip card transaction.
_public void hex_dump (const uint8_t *ptr, size_t len, size_t llen)
_public void hex_dumpf (FILE *f, const uint8_t *ptr, size_t len, size_t llen)
_public void ber_dump (const uint8_t *ptr, size_t len, unsigned int depth)

Function Documentation

_public void ber_dump ( const uint8_t *  ptr,
size_t  len,
unsigned int  depth
)

Definition at line 70 of file ber.c.

References ber_dump(), ber_id_octet_constructed(), ber_id_octet_tag(), ber_len_form_short(), ber_len_short(), and hex_dump().

Referenced by ber_dump(), and cp_ber_dump().

Here is the call graph for this function:

Here is the caller graph for this function:

_public void cci_log ( cci_t  cci,
const char *  fmt,
  ...
)
_public ccidev_t ccid_device ( uint8_t  bus,
uint8_t  addr
)

Definition at line 343 of file ccidev.c.

References _probe_descriptors(), ctx, and do_init().

Referenced by cp_dev_init().

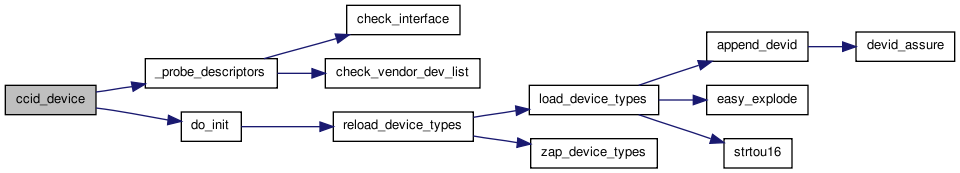

Here is the call graph for this function:

Here is the caller graph for this function:

_public uint8_t ccid_device_addr ( ccidev_t  dev  )

Definition at line 377 of file ccidev.c.

Referenced by cp_dev_addr().

Here is the caller graph for this function:

_public uint8_t ccid_device_bus ( ccidev_t  dev  )

Definition at line 372 of file ccidev.c.

Referenced by cp_dev_bus().

Here is the caller graph for this function:

_public void ccid_free_device_list ( ccidev_t list  )

Definition at line 333 of file ccidev.c.

Referenced by cp_devlist_dealloc(), and main().

Here is the caller graph for this function:

_public void hex_dump ( const uint8_t *  ptr,
size_t  len,
size_t  llen
)

Definition at line 52 of file util.c.

References _hex_dumpf().

Here is the call graph for this function:

_public void hex_dumpf ( FILE *  f,
const uint8_t *  ptr,
size_t  len,
size_t  llen
)

Definition at line 47 of file util.c.

References _hex_dumpf().

Here is the call graph for this function:
